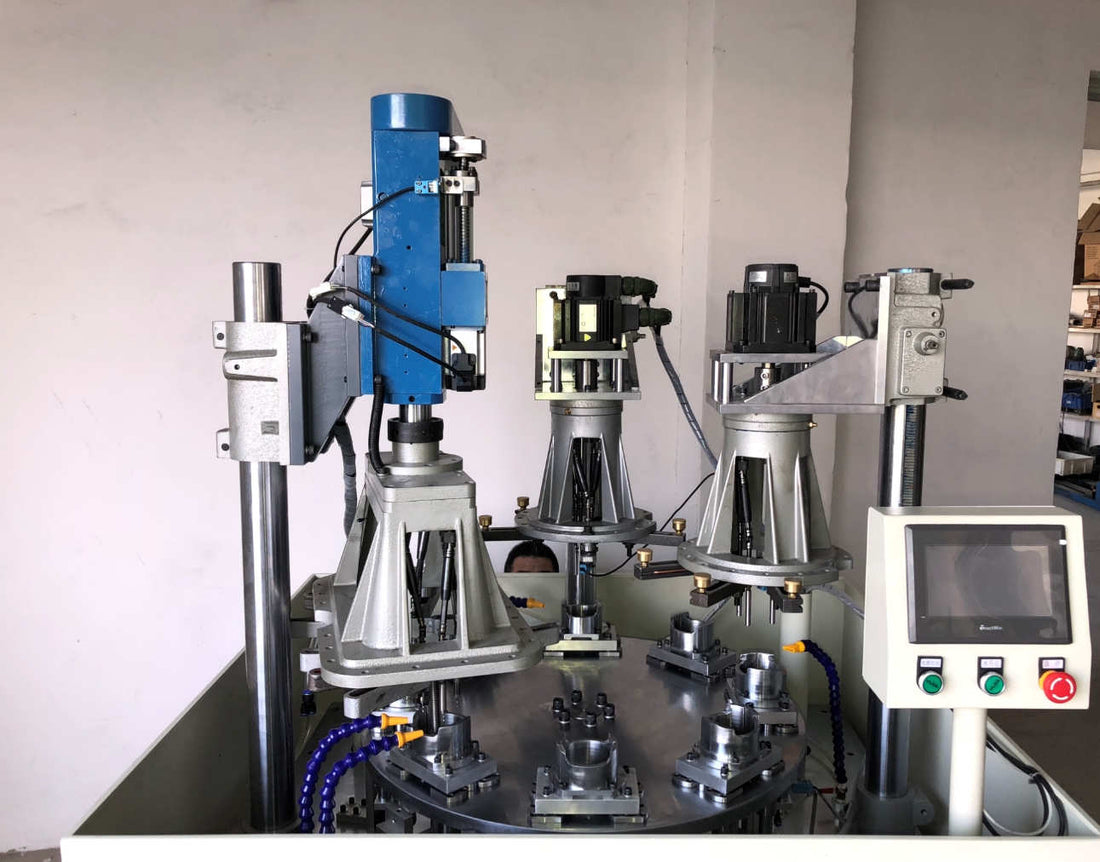

Automatic Drilling Machine: The Intelligent Core of Modern Industrial Drilling I. Equipment Overview and Core Value

I. Overview of the Equipment and Its Core Value

An automatic drilling machine is a precision mechanical device that performs efficient drilling on various materials including metal, wood, plastic, and composite through automated control systems.

By integrating technologies such as precision mechanical transmission, servo control, sensor monitoring, and intelligent programming, it fundamentally replaces traditional manual operations using handheld drills or swing-arm drilling machines.

In scenarios requiring mass production and high precision, the value of automatic drilling machines becomes particularly evident.

Its core advantages are:

Enhanced efficiency and consistency: The system operates continuously 24/7, with drilling speed, depth, and position precisely controlled by the program, eliminating fatigue errors and product inconsistencies caused by manual operations.

Complex Process Capability: Capable of effortlessly handling intricate drilling tasks including multi-hole configurations, varying hole diameters, inclined or deep holes, and seamlessly integrated with tapping and milling operations to form a multifunctional machining center.

Cost reduction: Significantly reduces reliance on skilled technicians, lowers defect rates and tool wear, and substantially lowers per-unit processing costs in the long run.

Work safety assurance: By keeping operators separate from rotating spindles and cutting debris, this fundamentally eliminates the risk of workplace injuries.

II. Core Technology Principles and System Composition

A standard automatic drilling machine consists of the following core systems working in concert:

Mechanical system:

Frame and base: Typically constructed with high-rigidity cast iron or welded steel structures, ensuring exceptional stability and vibration damping during machining.

Motion mechanism: A linear motion module with three (X, Y, Z) or more axes, powered by servo motors to drive precision ball screws or linear motors for rapid positioning and feed.

Spindle Unit: The core component is a high-speed electric spindle or gear-driven spindle, providing the rotational power and torque required for drilling.

The spindle is typically equipped with an Automatic Tool Change (ATC) system to enable seamless switching between different cutting tools.

Intelligent control system:

This is the 'brain' of the equipment.

Modern automatic drilling machines typically use Computer Numerical Control (CNC) systems, where operators set all drilling parameters through programming (G-code or graphical interface).

The system incorporates position feedback (via grating scale or encoder), load monitoring, and adaptive control.

When sensors detect tool wear or hard spots, the system automatically adjusts feed speed to prevent tool breakage.

Key support and execution systems:

Tool and fixture system: featuring high-precision spring chucks and hydraulic tool holders to ensure secure tool clamping with minimal runout.

Integrated with hydraulic or pneumatic fixtures for rapid workpiece positioning and clamping.

Cooling and chip removal system: The high-pressure coolant system cools the cutting tool, lubricates the hole walls, and flushes away chips.

A screw chopper or scraper chopper automatically collects and removes metal chips, keeping the work area clean.

Monitoring and Safety System: Equipped with tool damage detection, access control locks, and emergency stop mechanisms to ensure safe and reliable fully automated operation.

III. Main Types and Application Scenarios

Based on their structure and function, automatic drilling machines are primarily classified into the following categories:

Vertical龙门式自动钻孔机: The most common type with vertical spindle movement.

Ideal for drilling on the upper surface of sheet metal and shell components, widely used in mold, sheet metal, and machining workshops.

Horizontal Automatic Drilling Machine: With a horizontally mounted spindle, this machine specializes in machining circumferential or end face holes for long-shaft components, commonly used in automotive parts manufacturing (e.g., half shafts, drive shafts).

Multi-axis drilling machine: A single power head drives multiple drill shafts to work in synchronization, enabling simultaneous drilling of multiple holes in a single workpiece with exceptional efficiency. It is ideal for mass production of standard components such as flanges.

Drilling and Turning Center/Composite Machining Center: Building upon drilling capabilities, it integrates rigid tapping, milling, and turning functions.

With an automated tool magazine supporting dozens of tools, it completes all machining processes for complex parts on a single machine, serving as the core of a Flexible Manufacturing Cell (FMC).

Specialized Automatic Drilling Machine: A fully automated system designed for specific industries (e.g., micro-hole drilling for printed circuit boards, woodworking drills for furniture manufacturing), featuring integrated loading/unloading robotic arms and visual positioning systems.

IV. Industry Trends and Key Selection Considerations

Current developments in automatic drilling machines are showing the following trends:

Enhanced Intelligence: The system integrates an AI vision system to automatically identify workpiece positions and contours, enabling intelligent programming and error compensation. Through IoT, it provides remote monitoring, fault alerts, and production capacity analysis.

Enhanced Precision and Speed: Featuring linear motors and advanced temperature compensation and calibration technologies, it achieves micron-level positioning accuracy while continuously improving feed speed.

Greater emphasis on flexibility and environmental sustainability: The equipment is designed for easy customization and model upgrades to accommodate small-batch, multi-variety production.

Dry or micro-lubrication (MQL) drilling technologies are increasingly adopted to reduce coolant consumption and waste liquid disposal costs.

When selecting a model, users should focus on the following:

Processing capability: Whether the maximum drilling diameter, depth, material hardness, and worktable travel range meet the requirements.

Precision metrics: key parameters including positioning accuracy, repeatability, and spindle radial runout.

Automation level: Features such as automatic tool change, automatic loading/unloading, and online inspection.

System Stability and Service: Evaluate the rigidity of mechanical components, the brand reliability of control systems, and the supplier's technical support and after-sales service network.
